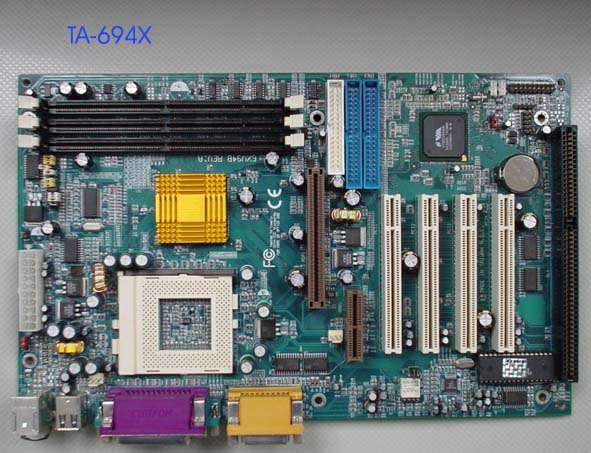

| TA-694X |
 VIA |
 Cost Desktop Solution |
| . Chipset | VIA 694X (VT82C694X + VT82C686B) |
| . Processor | Support Intel PPGA and FC-PGA Socket 370 CPU Series |
| . Bus Architecture | AGP/PCI/ISA/AMR |
| . Clock Generator | 66/75/83/100/133MHz |
| . Front Side Bus | 66/100/133MHz |
| . DRAM Support | 3x168Pin DIMM Socket Support Max. Memory Size up to 768MB PC100/133 SDRAM |
|
|
|
|
| |
| Specification |
| . BIOS | 2MB Award PnP BIOS with Enhanced ACPI feature for PC99 compliance
Support 120MB ATAPI Floppy Disk
Support ZIP Disk Drive
Support multi-boot from IDE, SCSI, CD-ROM and FDD
Support Software clock frequency control
Support Trend ChipAway Antivirus
Support HDD S.M.A.R.T. |
| . On board I/O | 1xFloppy Port (Up to 2.88MB, 3 Mode floppy support & LS-120)
2xSerial Ports
1xParallel Port (SPP/EPP/ECP)
4xUSB (USB 1.0/1.1)
1xPS2 Mouse and Keyboard
1xIrDA (Pin header on board) |
| . On Board IDE | Dual Ultra DMA 33/DMA 66/DMA 100 (686B) IDE Ports Support 4 Enhanced IDE devices |
| . Expansion Slot | 1x64-bit AGP slot (Support 1x/2x/4x AGP Mode)
4x32-bit PCI slot (PCI Specification version 2.1 compliant.)
2x16-bit ISA slot
1x32-bit AMR slot |
| . I/O Chip | On chipset (686A/686B) |
| . Advanced Features | Support Keyboard & Mouse Power on feature with ATX power
Support Hardware monitor function
12V Fan connectors (CPU1, CPU2, System)
Support Wake Up On LAN
ACPI 1.0/APM 1.2 Compliant (PC99 Color connectors)
On Board AC97 CODEC |
| . Form Factor | ATX Size (190mmx305mm) |
|
|
| |
|
Socket 370
